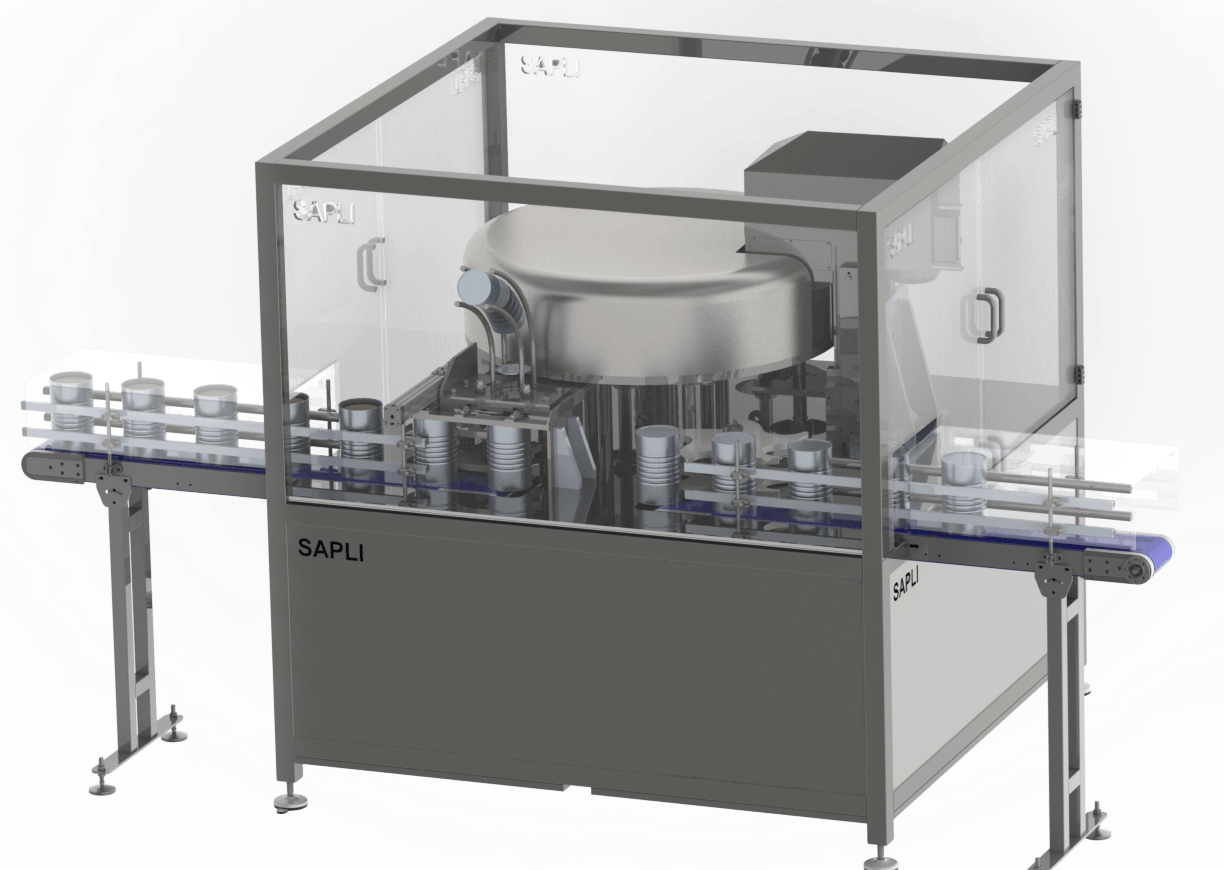

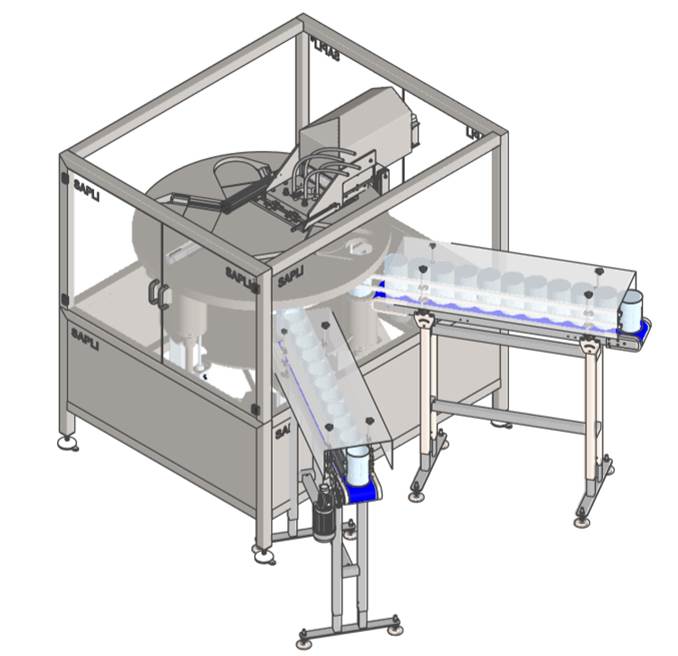

ROTARY 6-S VACUUMOTION SEAMER
ROTARY 6-S VACUUMOTION SEAMER up to 30 u/min
Production Speed: up to 30 u / min (depending on product properties)
Products: Powdered and granular products (Infant Formula, Milk Powder, Instant Coffee, Cacoa, Nuts, Snacks)
Can type: Metal Tin Can, Composite Can, Cardboard or Plastic Can
Can diameter: 50 mm - 200 mm (other sizes are possible)
Can height: 50 mm - 200 mm (other sizes are possible)
Residual levels of O2:  Adjustable ≤ 2% (depending on product requirements)
Gassing with: N2 or N2+CO2 gas mixture
Gas consumption: 165 litres / cycle (approx., depending on product properties)
ROTARY 6-S VACUUMOTION SEAMER

Productivity: up to 30 u/min

Sapli offers the unique high-performance can feeding system for vacuum-gassing and
seaming process, VacuuMotion, designed specifically to minimize the vacuumgassing and seaming cycle in order to achieve optimal residual oxygen levels.

Widely employed in the Food and Beverage Packaging Industry.
• Designed to seam metal and cardboard tin cans.
• Suitable for the wide range of product formats
and heights.

The vacuum-gassing option is needed depending on the product requirements. More than one station machine is applied in low and medium production speeds, depending on the product requirements.


OPERATING PRINCIPLE OF ROTARY VACUUM-GASSING SYSTEM:

1. Cans are fed into the machine through a conveyor belt. The can is placed in the exact position in the vacuum-gassing chamber.
2. The chamber is hermetically closed and the process of vacuum-gassing begins (oxygen is evacuated and nitrogen is added according to an individual formula for each product).
3. The whole chamber is transferred to the next station in the carousel, and a new can is put in its place and this process continues until the full cycle of vacuum-gassing is completed.
4. When the required level of residual oxygen is reached, the chamber moves to the seaming station, where a metal lid is fed and the can is seamed in a vacuum environment.
5. After seaming, the cans moves to the last station of carousel and leaves the machine through the exit conveyor belt.
TECHNICAL FEATURES

• The rotary vacuum-gassing system, VacuuMotion, is a high-performance solution for medium production speeds. • The modular principle allows adding of new stations in case of an increase in production capacity in the future.
• Suitable for vacuum-gassing of powdered products in metal, cardboard and plastic cans
• The multi-format principle allows you to work with many packaging formats on one machine: wide range of packaging shaped, heights and diameters.
• Perfect rolling and sealing technology
• Adjustable working speeds.
• Simple and intuitive format change (aprox. 60 min are required).
• Adjustable O2 residual levels depending on product requirements
• The pressure during vacuum evacuation of oxygen and during the addition of nitrogen is adjustable and can be controlled in each seaming cycle- • The machine parts in contact with the product are made of food grade stainless steel 316, which guarantees the highest food safety
