VGSX SEAMER WITH VACUUM AND GASSING
VGSX SEAMER WITH VACUUM AND GASSING
INLINE MULTIHEAD OXYMOTION SEAMER

Productivity: up to 18 u/min
2 or 3 heads inline seamer

Sapli’s Vacuum Gassing and Seaming stations can be configured with or without vacuum-gassing option (adding of inert gas in vacuum chamber). The Customer chooses:
• atmospheric
• vacuum
•vacuum and gassing seaming operations machine.

 Widely employed in the Food and Beverage Packaging Industry.
• Designed to seam metal and cardboard tin cans.
• Suitable for the wide range of product formats
and heights.

The vacuum-gassing option is needed depending on the product requirements. More than one station machine is applied in low and medium production speeds, depending on the product requirements.





MACHINE PERFORMANCE METHOD

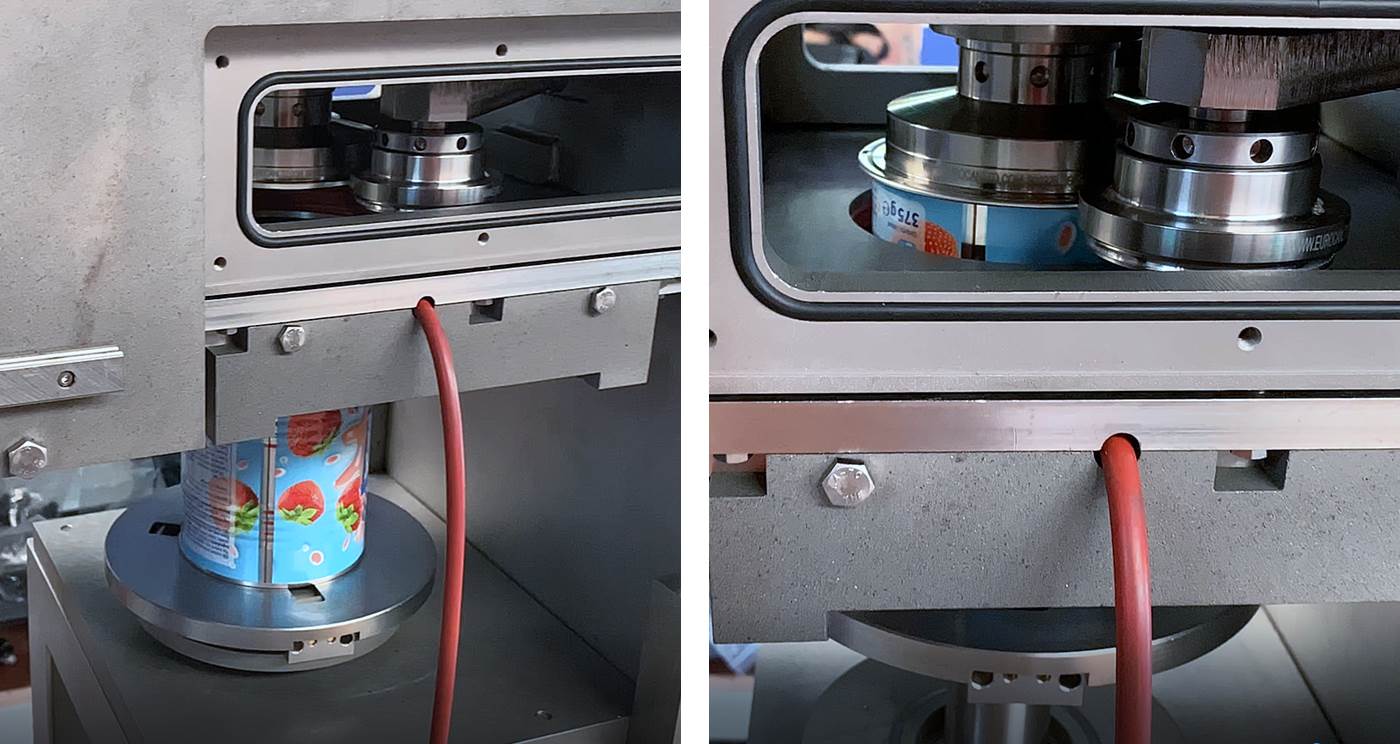

1. Cans are fed into the Sapli machine via a transportation belt. The vacuum grip driven by servo motor system places the can in the exact position in the seaming chamber.
2. The chamber is hermetically closed and the process of vacuum-gassing begins (oxygen is evacuated and nitrogen is added according to an individual formula for each product).
3. The can and end are clamped onto the stationary seaming chuck, and the double seaming operation is initiated.
4. After seaming, the closed can is gently pushed onto exit transportation belt.

Sapli offers the unique on the market highly-efficient cans feeding system, developed specially for maximum reduction of vacuum gassing and sealing cycle and achieving of the optimal level of Oxygen.


TECHNICAL FEATURES

• The inline vacuumgassing machines are high performance solution for low production speeds.

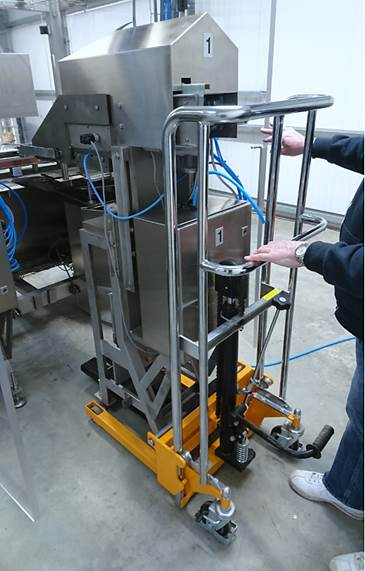

• The modular principle allows adding new seaming stations in the future, in case of increasing of production capacities.
• Suitable for the seaming and vacuum gassing products in tinplate, aluminium, paperboard and plastic cans packaging across a wide range of industrial sectors.
• Perfect sealing technology with adjustable working speeds.
• Easy and intuitive format change.
• Adjustable levels of residual O2 level after seaming, depending on the product requirements for guaranteeing a long shelf-life of the product.
• Vacuum and gassing pressures are configurable, and can be monitored on each can seaming cycle
• Completely produced from food-grade 316 Stainless Steel, guarantying the highest food security and produced with EU Declaration of Conformity.
• Suitable for the wide range of tin cans formats, heights and diameters.
• Multiformat principle allows working with lots of packaging formats at the same machine.
• Food grade grease lubrication and seaming rolls that do not require lubrication
